The overall description of JLF-10T medium-sized freshwater flake ice machine:
GLF series freshwater flake ice machine is a new type of high-efficiency ice-making unit developed for the ice requirements of freshwater cold storage and cooling operations. The unit adopts an integrated overall design, suitable for a wide range of applications such as fishery food processing, meat food processing, supermarket logistics, water conservancy and hydropower, concrete cooling of construction engineering, etc. It has corrosion resistance, fast ice production, dry and clean ice flakes, beautiful shape, and difficult It has the characteristics of agglomerates, simple and convenient to use, energy saving and environmental protection, and ice can be made after power is connected. The flake ice machine is made of stainless steel and anti-corrosion alloy aluminum. The service life can reach more than 10 years. The whole process is intelligently controlled and does not require personnel to operate.
The main configuration table of the 10 ton flake ice machine:
Serial number | name | Brand | country of origin | Quantity | Quantity |
1 | compressor | Han Bell | Taiwan | 1 | |
2 | Evaporator | Make ice hard | Dongguan | 1 | Spiral groove structure |
3 | Water-cooled condenser/oil cooler | Create excellence | Shenzhen | 1 | Efficient internal thread heat exchange tube |
4 | Oil separator | Fask | Tianjin | 1 | |
5 | Expansion valve | Danfoss | Denmark | 1 | |
6 | Filter drier | Fask | Tianjin | 1 | |
7 | The electromagnetic valve | Hong Sen | Hong Sen | 1 | |
8 | Gas-liquid separator | Fask | Tianjin | 1 | |
9 | Suction filter | Fask | Tianjin | 1 | |
10 | Water pump | Hongjian | Guangzhou | 1 | |
11 | Cooling Tower | Water chestnut | Dongguan | 1 | |
12 | Cooling water circulation pump | Sea dragon | Dongguan | 1 | |
13 | Reducer | Rio Tinto | Zhejiang | 1 | |
14 | Reducer | Make ice hard | Dongguan | 1 | PLC automatic control |
15 | Electrical accessories | LG(LS) | Korea | 1 | Electrical accessories are all LS brand |
16 | Water level switch | FAST | Shenzhen | 1 | |
17 | Infrared beam switch | RIKO | Taiwan | 1 | |
18 | Ice bucket upper and lower body | Make ice hard | Dongguan | 1 | All cast aluminum parts |
19 | Water tray/water baffle | Make ice hard | Dongguan | 1 | All made of 304 stainless steel |
20 | Package board/water tank | Make ice hard | Dongguan | 1 | All made of 304 stainless steel |
The main technical parameters of the 10 ton flake ice machine:
Serial number | name | parameter | Remarks |
1 | Designed standard ambient temperature | 25°C | |
2 | Designed standard water supply temperature | 18°C | |
3 | Evaporating temperature/condensing temperature | -20°C/40°C | |
4 | Use refrigerant | R22 | |
5 | Power supply | 3P/380V/50Hz | |
6 | Cooling capacity | 76KW | |
7 | Total power | 38.6 kW | |

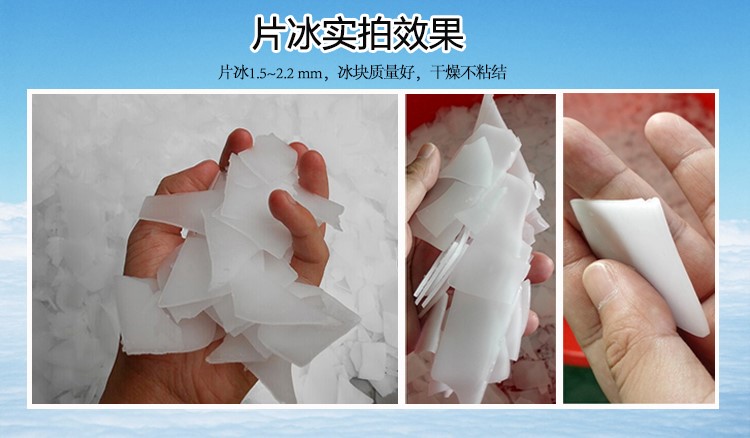

8 | Flake ice thickness | 1.5~2.2 mm | |
9 | Noise (within 2m) | 65 dBA | |
10 | Dimensions of ice maker (length*width*height) | 2200*1900*1890 mm | Net size |
11 | External dimensions of ice storage (length*width*height) | According to customer site | Standard reserves 10 tons |
12 | Total Weight | 2250 kg | Includes ice storage |
Remarks: The above technical parameters are standard technical parameters. We can provide customers with various non-standard customized ice making equipment. If you have any requirements, please contact us. We will choose the most suitable ice maker configuration for you according to your needs.
GEALLY flake ice machine has the following advantages:
Clean and hygienic: The flake ice machine can be made of SUS304 stainless steel and other alloy materials, and the hygienic level can reach the international HACCP and FDA certification standards.
Easy to install: The flake ice machine can be air-cooled integral type or container type. It only needs to be connected to water and electricity to make ice, and the installation is simple and convenient.
Simple maintenance: The flake ice machine adopts a modular design. On-site maintenance is simple. Valves are installed on the front and back of the important parts, which is convenient for customers to replace vulnerable parts and maintain the machine. At the same time, the convenience of product use is fully considered.
Intelligent control: The flake ice machine adopts PLC automatic control, one-button operation is simple to make ice, complete protection functions, automatic fault diagnosis, real-time display of machine working conditions, compact and beautiful product structure, humanized and reasonable design, and intelligent failure Alarm protection function (high and low voltage protection, full ice protection, water shortage protection, phase sequence protection, current overload protection, etc.).
Brand accessories: the main refrigeration accessories are from internationally renowned brand authentic accessories, such as: German Bitzer/American Copeland/Italy Lai Fukang/Taiwan Hanbell compressor; electrical accessories use French Schneider, South Korea LG, Germany Siemens; refrigeration accessories use Danfoss in Denmark, ALCO&Emerson in the United States, etc.-reliable quality and stable performance.
High efficiency and energy saving: The flake ice machine can be customized according to the customer's local climatic conditions, and the refrigeration system is optimized to improve the operating efficiency of the entire system and achieve energy saving and high efficiency.
Stable and durable: It integrates the ice-making system and processing technology and experience at home and abroad. The machine is stable and reliable, and the designed service life is more than 10 years.
Patented technology: Jili flake ice machine is designed and manufactured with industry-leading patented technology. It has a complete set of production and processing equipment and the production process of the evaporator, the core part of the flake ice machine. It is currently one of the few domestic manufacturers that can independently produce evaporators. Its products are exported to foreign countries, and it is the preferred supplier of most domestic refrigeration companies in the same industry; the products have passed CE certification and ISO9001 certification, and quality assurance.
Professional customization: We can provide you with professional suggestions, and can also tailor-made according to your specific requirements to meet the different needs of different customers, such as: the use of refrigeration accessories, the size of the product, the split installation, and the voltage Requirements, material selection and cooling methods, etc.
Service advantages: GEALLY provides customers with a complete service system, from product design, manufacturing, transportation, installation, technical training, equipment maintenance, maintenance, and spare parts to spare parts.
